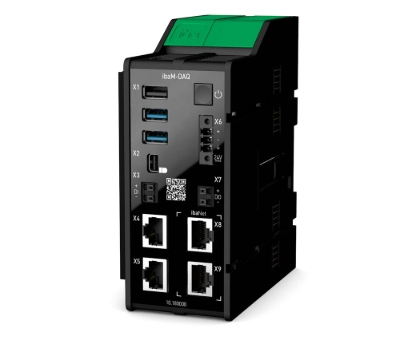

ibaM-DAQ SYSTEM Configurator

Head modul with integrated WIBU USB Dongle - Installed as an ibaPDA-Server

Technical Data:

• Manufacturer: iba AG
• Module for Data Acquisition
• CPU module with Intel Atom x7-E3950, 4x 1.6 GHz
• Operating System Windows 10 IoT Enterprise x64 LTSC 2021/v21H2
• 512 GB SSD
• 8GB RAM
• 1 Digital Input ± 24V onboard
• 1 Digital Output DC-switch onboard
• Standard interfaces for 2x Ethernet, 2x ibaNet, 3x USB, Mini-Display-Port
• Installed with the following SW licenses:
  - ibaPDA for 64 signals
  - ibaPDA-Interface-PLC-Xplorer
  - ibaPDA-OPC-UA-Server+
  - ibaPDA-Data-Store-MQTT-16
• All SW lizenzen are bound to the device and may used exclusively for this device.
• PDA Software is extendable up to 1024 signals with additional licenses
• Extendable with modules of the MAQS modular system
• Extendable with ethernet based interfaces
• Fanless, no rotating parts
• E easy mounting for DIN-rail

Remarks:

• This is a class A product. In a domestic environment this product may cause radio interferences in which case the user may be required to take adequate measures.
• To use a compact UPS in operation with the device is highly recommended.
• License protection via integrated WIBU USB dongle
• Remote access via ibaPDA-Client through ethernet interface
• Contains software maintenance and support after the purchase for 2 years. Afterwards a software maintenance and support contract is required.
• Successor device for ibaDAQ-C, fully application compatible
